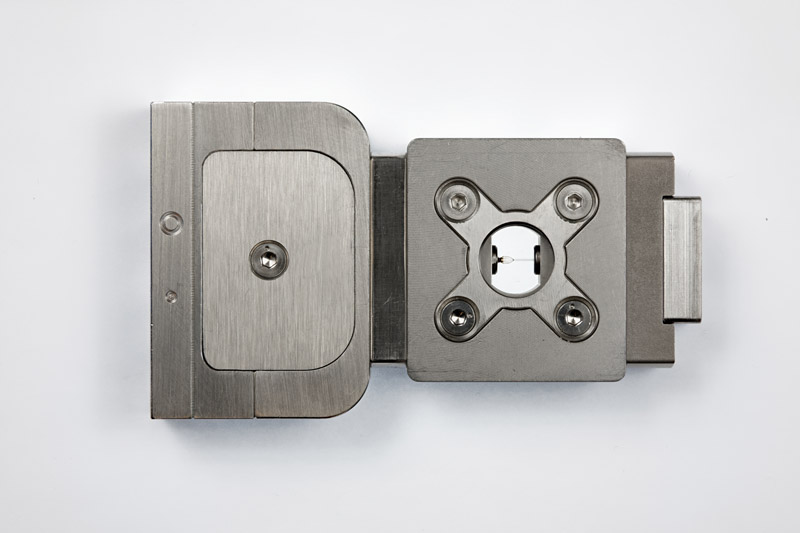

RayDrop® | Simple & Double
The RayDrop® is a microfluidic droplet generator for academic and R&D lab based on the integration of the emulsification Secoya technology in an easy-to-operate device.

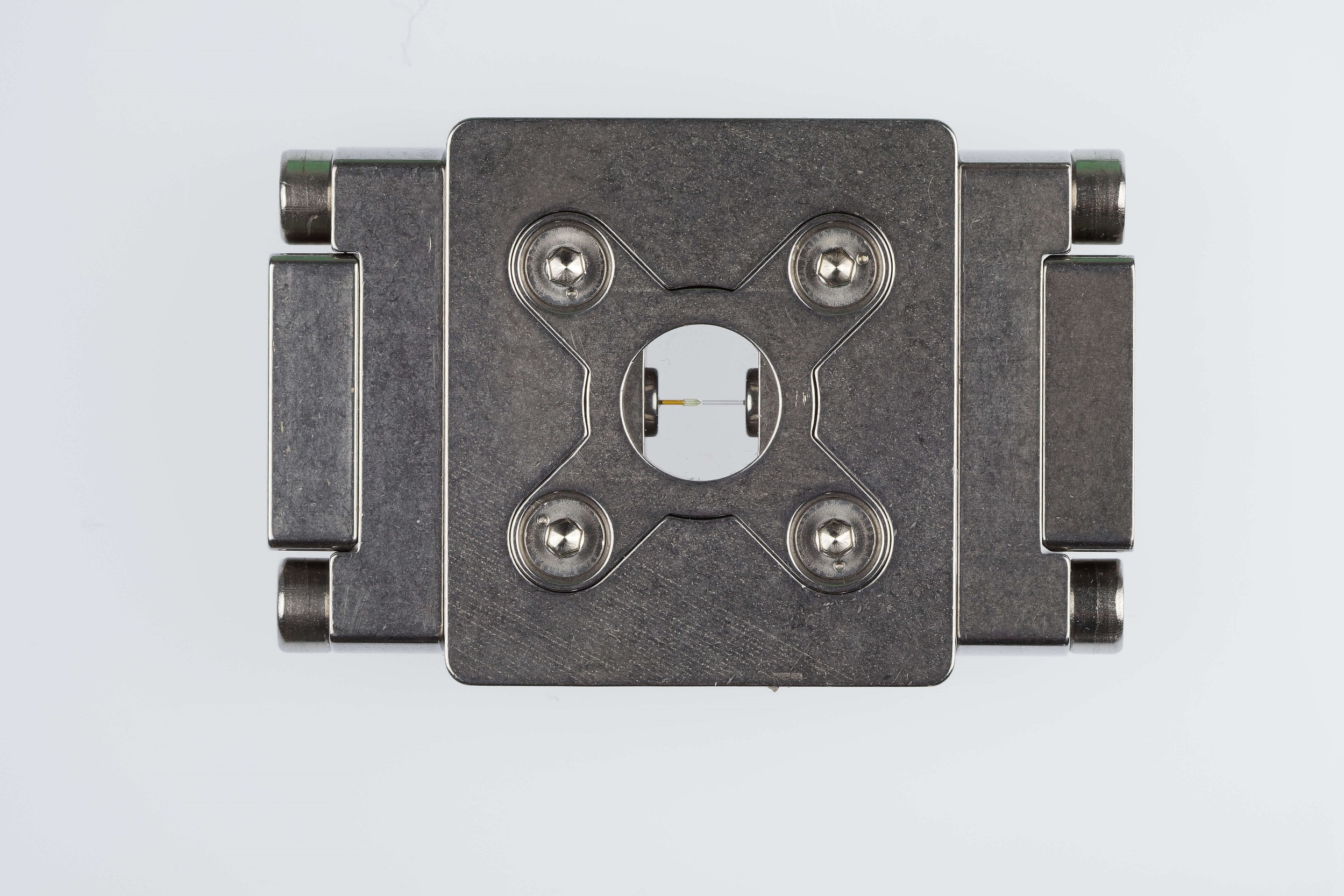

The RayDrop® is made of three metallic parts fully removable: two inserts on each side supporting capillaries and a central box with two glass windows for easy observation. The device is connected to fluid supplies and collection tubing by means of standard microfluidic tubing and nuts.
Perfect control of emulsion production
The Secoya emulsification technology is based on the integration of the most efficient microfluidic technologies in a robust stainless-steel equipment.
The way we produce droplets, particles and capsules relies on the use of couples of capillaries perfectly aligned in a metallic reservoir. The first capillary is terminated with a 3D-printed nozzle and injects the droplet phase in the junction. The second one is the only output of the system, so it collects both phases, the droplet phase and the continuous phase filling the reservoir under pressure.
The droplets are produced by the controlled squeezing of the droplet phase by the continuous phase at the entrance of the collection capillary
- Monodisperse micrometric droplets at kHz
- No need of coating
- No need of surfactant
- Easy to disassemble and clean
- Easy to connect with standard tubing and nuts
– A QUICK AND EFFICIENT DOUBLE EMULSION GENERATION METHOD FOR FLOW CYTOMETRY DROPLET SORTING
– BACTERIA AND YEAST ENCAPSULATION IN SMALL DOUBLE EMULSIONS
– CELL ENCAPSULATION IN SMALL DOUBLE EMULSIONS
